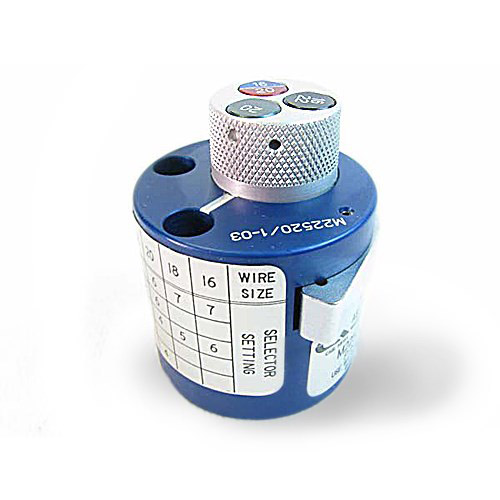

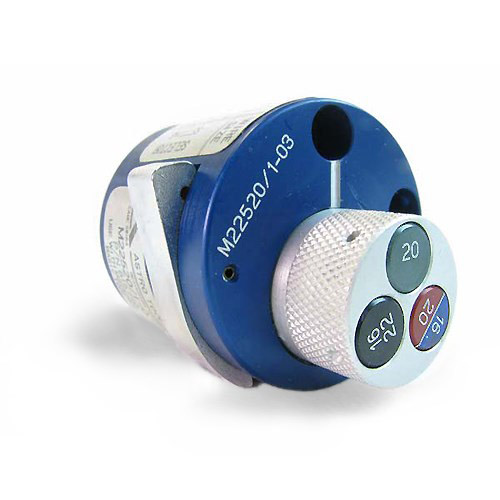

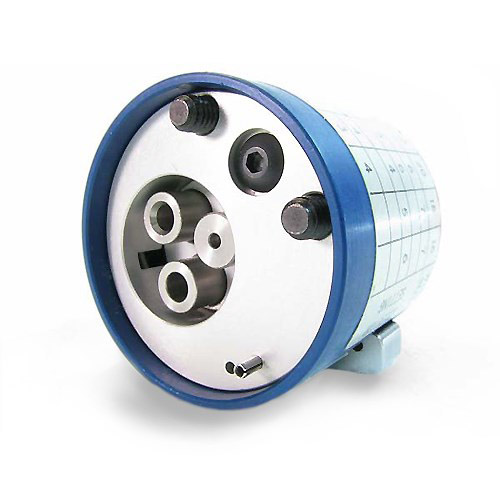

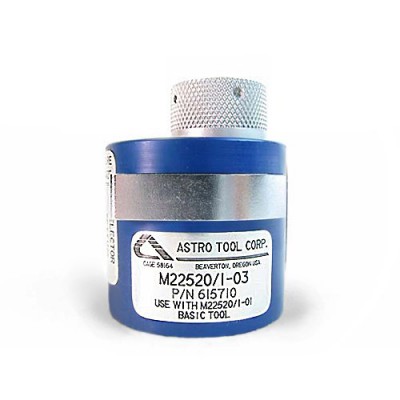

Astro Tool Crimp Tool Turret Head DMC TH4 (M22520/1-03)

$204.33/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-20353
MFR Model# 615710

Overview

The 615710, mil spec M22520/1-03, is a turret head used with the 615708, mil spec M22520/1-01, crimp tool frame on size 20-16 pin and socket contacts installed in MIL-C-28748 connectors.

Features

  • Contact numbers:
  • MS17803-16-16, MS17803-16-20, MS17803-20-20, MS17804-16-16, MS17804-16-20, MS17804-20-20, MS17807-16-16, MS17807-16-20, MS17808-16-16, MS17808-16-20, OS12814 Basic Type P & M, M21097/9-01, M39029/34-271, M39029/34-272, M39029/34-273, M39029/35-274, M39029/35-275, M39029/35-276, M39029/36-277, M39029/36-278, M39029/37-279, M39029/37-280
