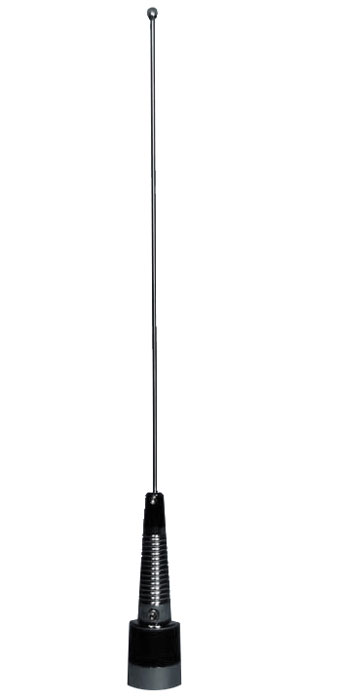

RAMI AV-7-1A 5/8 Wave Vehicular COM Antenna Only And Accessories

$184.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14037
MFR Model# AV-7-1A

Overview

The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band are required. Heavy duty constructed with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel. Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a magnetic or fixed “NMO” base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz.

Specifications

  • Model Number: AV-7F/AV-7M
  • Application: Ground Vehicular VHF COM Communications
  • Frequency: 118 - 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5:1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: “BNC” Male
  • Max Height: 45”
  • RF Power Capacity: 150 Watts

Reviews

Great antenna. Using on my emergency management vehicle. I am a licensed drone pilot and use it to have communications with planes in the area to let them know my location and how high I’m flying. Receives and transmits very well

Steven H Verified Purchase

RAMI AV-7-1A 5/8 Wave Vehicular COMMAntenna Only

July 9, 2024

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this RAMI AV-7-1A fit an Icom A6 handheld radio?

This is the antenna only. You would need the corresponding coax cable to attach your radio.
