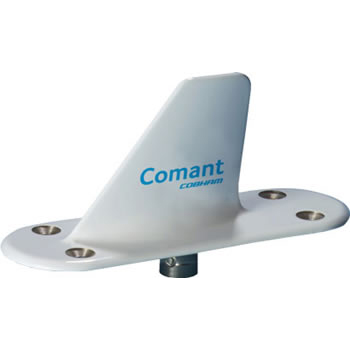

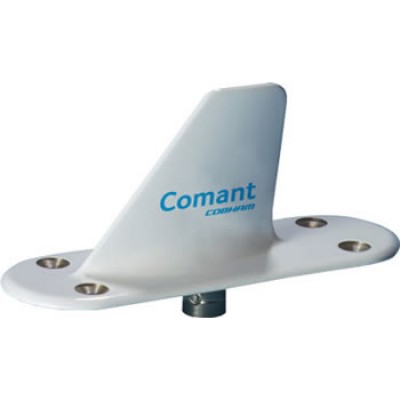

Comant DME / Transponder Antenna CI-110-40-30

$564.30/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06820
MFR Model# CI-110-40-30

Overview

Frequency • 960-1220 MHz &1030-1090 MHz

All metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with open path to ground, this antenna is ideally suited for those aircraft equipped with standard and Mode S transponders.

Tough one piece construction provides 175 lbs. side load capability. Moisture failure is prevented with completely sealed construction.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 110-40 DME/XPDR
Electrical
Frequency

960 to 1220 MHz

VSWR

1.5:1 960 to 1220 MHz

Polarization

Vertical

Radiation Pattern
Omnidirectional - Equivalent to 1/4 Stub
Impedance RF
50 Ohms
Resistance DC
Open Circut
Power RF
Peak 3KW Average 100 Watts
Mechanical
Weight
0.25lb. Maximum
Height
2.20 in. Maximum
Material
Die Cast A380 Aluminum Alloy
Finish
Polyurethane Enamel
Connector

C

Environmental
Temperature
-54ºC to +85ºC
Altitude
70,000ft.
Air Speed
600 Knots TAS at 25,000 ft.
Federal Specifications
RTCA Environmental
DO-160D
FAA TSO
C66b, C74c
RTCA MOPS
DO-144, DO-189
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I would like to ask you about the COMANT CI110 series, I can see the very many ci110 in your website would you explain what is difference with CI110-40-30, CI110-61-30 and CI110-41-30?

Per Comant: "The CI 110-40-30 and CI 110-41-30 are both 4-hole-mounted antennas. The CI 110-40-30 has a DC Open Circuit for lightning protection, and the CI 110-41-30 has a DC Short Circuit for lightning protection. Some radios will not work with certain types of DC lightning protection circuits, so it is imperative that they check this requirement before making a purchase.

Likewise, the CI 110-60-30 and CI 110-61-30 are both 6-hole-mounted antennas. The CI 110-60-30 has a DC Open Circuit for lightning protection, and the CI 110-61-30 has a DC Short Circuit for lightning protection."

Q: I would like to ask you, Is that the O-ring and screw components are included in the box with the Comant CI-110-40-30 antennas?

There is an oring in the package but no mounting hardware is provided.
