Dual VOR coupler/single glide slope triplexer allows the operation of two VOR receivers and one glide slope receiver from one VOR/GS antenna. Compact design makes installation easy. |

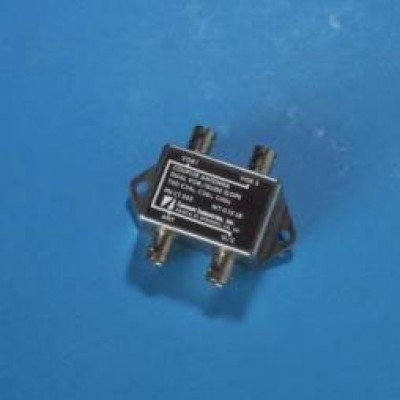

MODEL CI 505 TRIPLEXER DUAL VOR / GLIDE SLOPE | |
Electrical | |
Frequency | 108-118 & 329-335 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20dB Minimum between any receiver port |
Impedance RF | 50 Ohms |
Mechanical | |
Weight | 0.20 lb. Maximum |
Height | 0.88 in. Maximum |
Material | Die Cast Aluminum |
Finish | Aluminum |
Connector | BNC (Female) |
Federal Specification | |
FAA TSO | C144 |
