MGL Avionics iBox Hub
- JUMP TO
- Overview
- In The Box
- Reviews
- Q&A
- View in Catalog
Overview
|

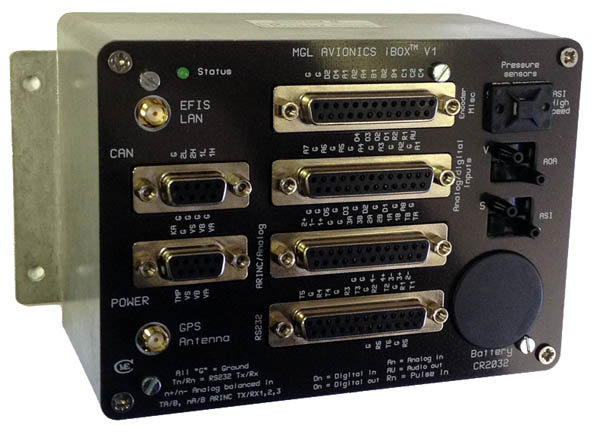

The iBox is the heart of the iEFIS system, and the conductor in the symphony of communication between all system devices and the iEFIS screens. The iBox contains the GPS engine (with antenna connection), the pitot/static sensors and Angle of Attack sensors. The iBox is the hub of communication for all the system devices (AHRS, RDAC, Autopilot Servos) and is also the hub of communication with all third party devices (radios, transponders, ADS-B, VP-X) via its RS-232 and ARINC interfaces. One iBox is necessary in every iEFIS system, and in cases where maximum redundancy is required, a 2nd iBox can be added to the system. The 2nd iBox acts as a ‘hot standby’ and is ready to take over all iBox tasks automatically when necessary, or on command by the pilot. |
In The Box
- The Power Connector
(pigtail harness included with every iBox):
The iBox can be powered by 1 or 2 Power Sources (as in the case of a backup battery system). It also has a Keep Alive Power input that maintains date and time and some non-volatile memory items without using the CR2032 battery, which can result in up to 10 years of life on the CR2032 eliminating the need to change this battery every year. The Outside Air Temp sensor also connects to the Power connector. - The CAN Connector (pigtail harness included with every iBox):
The iBox features 2 CAN buses (CAN 1 and CAN 2). The system devices can be split up in any way on each of the CAN buses. - OAT Probe
Aluminum OAT probe is included with every iBox - GPS Antenna
GPS Antenna is included with every iBox (inside mount) - EFIS LAN coax
An RG-174 EFIS LAN coax cable is included with each system
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Each iBOX must be powered via a private, pilot accessible circuit breaker. Should both main and standby power supply inputs be used, both power supply circuits need to be switched by the breaker. The breaker can be an ordinary single or dual circuit switch of a minimum 1A DC rating. You need a dual circuit switch in case the iBOX is operated using power main and standby power supplies.
