RAMI AV-289 Transponder / Cellular / Wifi / Umts Antenna

$752.40/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-16526
MFR Model# AV-289

Overview

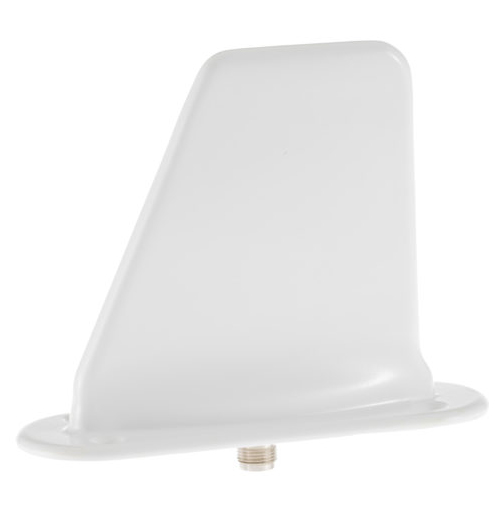

The AV-289 is a broadband blade type antenna for application such as transponder, cellular, 4G, GSM, PCS, WIFI, and UMTS, however, it is FAA qualified as a transponder antenna. The antenna housing is constructed of a Polyarylamide Plastic shell and the base is 6061-T6 aluminum with a chemical conversion coating mer MIL-C-5541. The antenna is supplied with an o-ring and mounting hardware. The antenna is designed to operate at speeds up to Mach 1 and altitudes up to 55,000 feet.

Specifications

Application
  • Transponder, Cellular, 4G, GSM, PCS, WIFI , UMTS
Frequency
  • 700-799 MHz (Non TSO Function)
  • 800-849 MHz (Non TSO Function)
  • 850-1029 MHz (Non TSO Function)
  • 1030-1090 MHz (Non TSO Function)
  • 1091-2700 MHz (Non TSO Function)
Impedance
  • 50 Ohms Nominal
VSWR
  • 2.8 Max at 700-799 MHz 2.8 Max
  • 2.2 Max at 800-849 MHz
  • 2.0 Max at 850-1029 MHz
  • 1.5 Max 1030-1090 MHz
  • 2.0 Max 1091-2700 MHz
Polarization
  • Vertical
Connector
  • “TNC” Female (optional: SMA, BNC and N)
Pattern
  • Omni- Directional
Max Weight
  • 0.60 lbs
RF Power Capacity
  • 100 Watts Continuous, 1000 Watts Peak
Gain on 4 ft Round Ground Plane
  • 4 dBi Nominal
Gain on 2 ft Round Ground Plane
  • 3.5 dBi Nominal
Color
  • Gloss White
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the RAMI AV-289 Transponder have certs with it?

Yes certs can be furnished with this item if requested at time of order.
