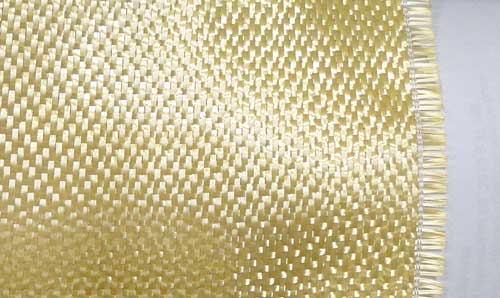

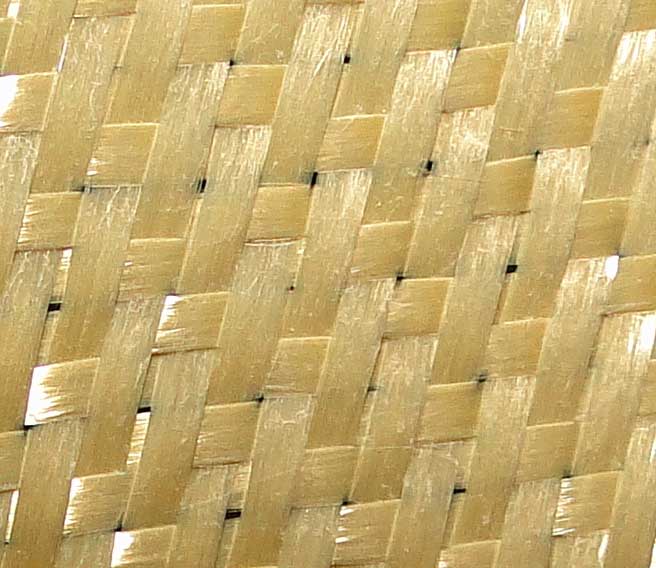

Bidirectional Woven Lumat Aramid - 4 Harness Satin Weave 1500D
$47.03/Yard
Price Includes GST
Part# 01-01665
MFR Model# F-2506-50
MFR Model# F-2506-50
- JUMP TO
- Overview
- Spec Chart
- Reviews
- Q&A
- View in Catalog
Overview
|
**Note: These products are sold by the yard** The resin consumption provided is for the approximate amount of resin by weight, contained in the final part after processing by vacuum infusion. This does not account for the resin used in the flow lines and consumables such as flow media or breather cloth. Wet-layup by hand will also have a higher resin consumption in the final part and is dependent upon users techniques. Vacuum bagging a wet layup will improve the resin content. Too much resin will cause a weaker part, NOT stronger. Average rule of thumb is around 45% (+/- a couple percent). To calculate actual resin % in your part a burn test is used. For example you have a part weighing 100 grams, you would burn off the resin which would leave the fiber behind. You should have 55 grams of fiber left when your process is working correctly. Due to the variables in processing it is hard to give an accurate amount of resin needed to purchase for making your part. However you will have waste no matter what method is used. A suggested ratio is about 1-1.5lbs of resin per lb of fabric purchased. |
Spec Chart
| Unit of Measure | Linear Yard |
|---|---|
| Material Warp | Aramid |
| Material Weft | Aramid |
| Weave | 4 Harness Satin |
| Ends Per Inch | 13 |
| Pics Per Inch | 13 |
| Yarn Size Warp | 1500d |
| Yarn Size Weft | 1500d |
| Tow Size | 1500d |
| Weight | 5oz/170gsm |
| Width | 50"/127cm |
| Thickness | |
| Resin Consumption @ 45% Resin to Fabric by Weight | 4.09opsy/137gsm |
