Start Pac Li2600Qc Starter 26VDC

$3498.00/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-09515
MFR Model# LI2600QC(24V)

Overview

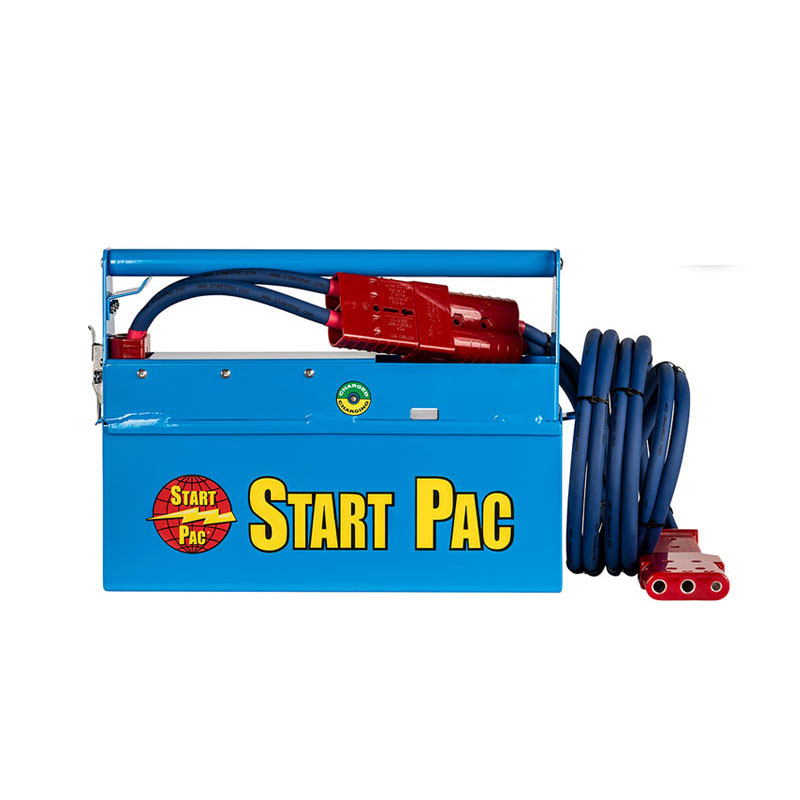

This compact portable Lithium Ion starting unit is a full 26VDC battery pack and will provide superior starts on small to medium size turbine engines. It has a built-in charger with a total of 4.0 amps output and a recharge time of approximately six hours.

This unit is especially designed for aircraft that will not accept a full 28-volt battery pack (actually reads 30-31 volts). Aircraft such as the Phenom 100 and Eclipse 500 will accept this 26-volt unit (actually reads 28.5 volts).

Note: This unit is designed for engine starting only. Note: Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 20 volts, a spike during a start is okay. Voltages below 20 begin the damage to the batteries. At 18 volts, the batteries will be damaged beyond repair.

Features

Specifications

  • 20 amp hours @ 10 Hour rate
  • 2000 AMPS Peak Current
  • 30 lbs./13.6 kg complete weight with built in charger and aircraft cable
  • L16” x W3.75” x W12”/L40.64cm x W9.525cm x H30.48 cm
  • Not to be used as an aircraft battery charger.
  • Do not charge in flight.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have any additional information on the cable for this Start Pac LI2600QC starter unit? AWG Thickness?

The cable going from the Start Pac to the aircraft is 1 / O (1 ott). This is the only cable information the manufacturer could provide.

Q: How much the voltage can charging to AC. 220 VOLTS OR 110 VOLTS?

Voltage is 26v, Peak Current is 2000 A. This can be ordered as 220 or 110.
