- Photo may represent series and not specific product
- SHARE

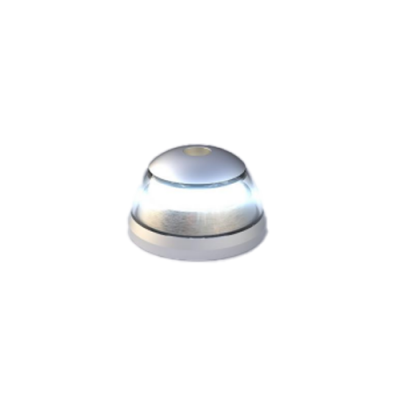

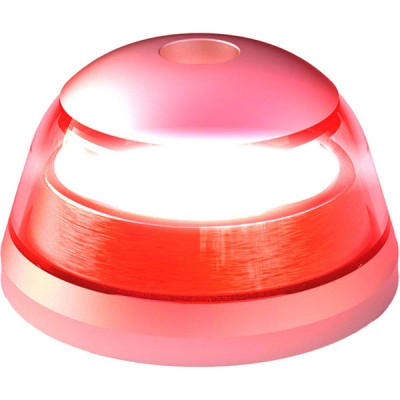

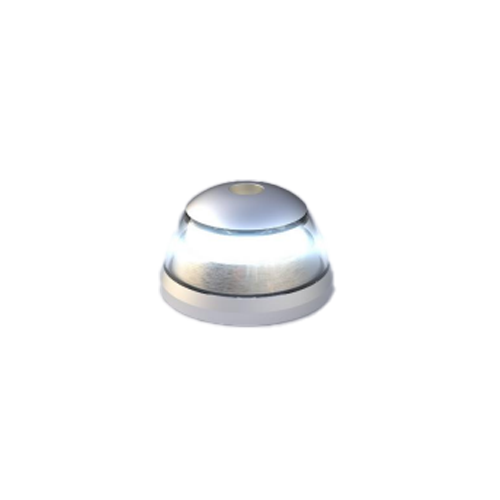

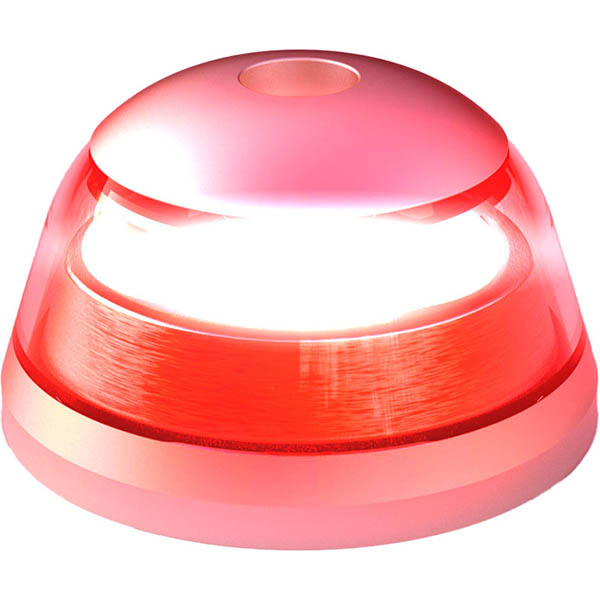

Aveo DayLite Series Redbaron Mini NXT™ - LED Anticollision Light
Select Color:
RedWhitePrice Includes GST
Overview
|
At only 33.8 millimeters in height (1.33 inch) the new RedBaron Mini NXT™ is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT. THIS IS NOT A TSO CERTIFIED LIGHT |
Specifications

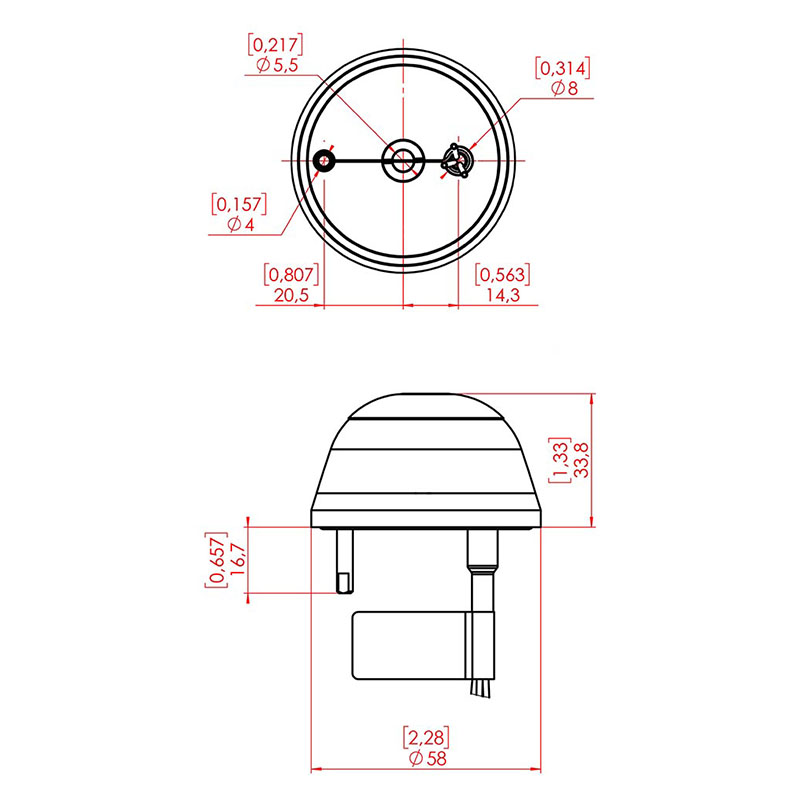

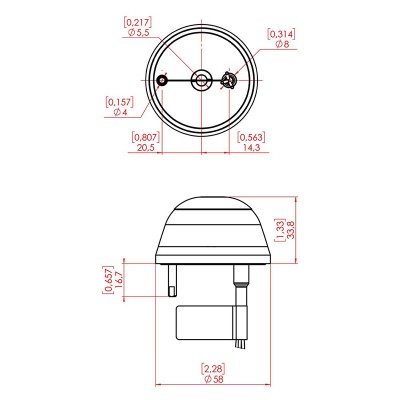

| Dimensions (mm): | 58 mm x 58 mm x 33,8 mm |
|---|---|
| Dimensions (inches): | 2.28“ x 2.28“ x 1.33“ |
| Weight: | 70 g / 2.47 oz |
| Operating Voltage Range: | 9 – 18 VDC |
| Input Current: | 2A @14V |
| Input Power: | 28W @14V |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Ambient Temperature: | from -55°C to +85°C from -55°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 80V, both polarities |
| Under-Voltage Protection (lockout): | Yes (7.5V) |
| Over-Voltage Protection (lockout): | Yes (19.9V) |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
Documents
- Install Manual (PDF)
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
