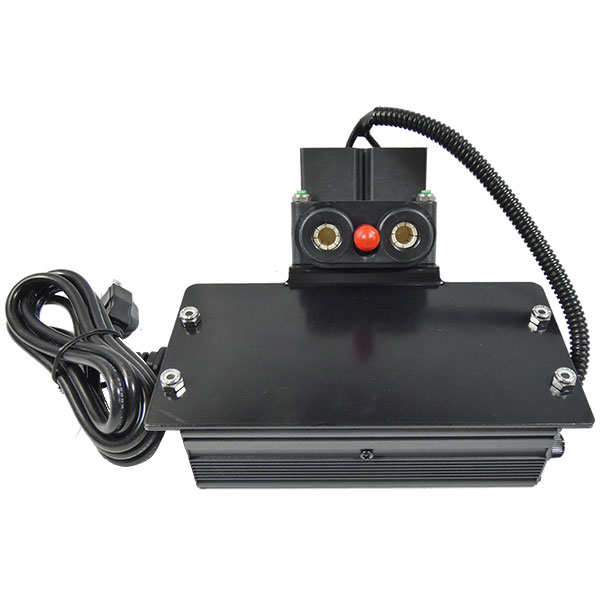

Gill GC-024E Charger Assembly 110V

$1348.60/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-13011
MFR Model# 60118

Overview

IMPORTANT: These chargers will only function when connected to 110-120V input. Do not connect them to 220-240V or you may damage the charger.

This light weight GC-024E charger is designed for larger batteries with the Elcon connector.
    Elcon Assembly for Quick Set-Up
    Light Weight / High Strength Aluminum Case
    Full Automatic: 3 Stage Charger can be left on the Battery for long periods
    Charge Status LEDs: Power On, Charging and Fully Charged
    Circuit Protection: Reverse Polarity and Short Circuit Protected (Fused)
    UL and CE Approved
    Power Cord Length: 6 Feet
    Charge Cord Connected to Elcon Assembly
    Charge Control: Constant potential then reverts to a float standby
    Supported with a 2 Year Warranty

    Input: 110-120 VAC
    Output Equalizer Voltage: 28.8 VDC +/-0.2V
    Output Float Voltage: 26.8 VDC +/-0.2V
    Dimensions: 7.2"W X 3.1"H X 7.8"D
    Weight: 2.6 pounds
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I give it a 5 star for ease of use. it is a simple plug and play. Installed a new Gill G6381E battery and plugged in charger, it was charged and ready to go in right at 2 hours.

Rick V
January 10, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
