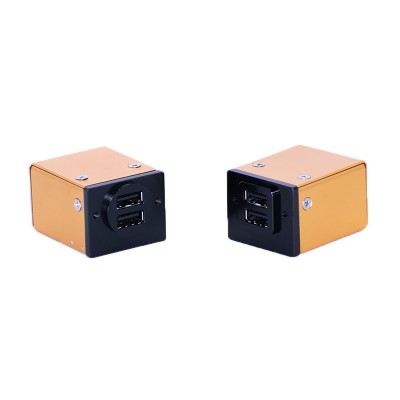

Guardian Dial Power, Dual Panel Port USB-A Power Supply 2.7 AMP
$326.70/Each
Price Includes GST
Part# 13-24527
MFR Model# 75-1
MFR Model# 75-1
Overview
|
Reliable Dual USB Power in your Panel The smartPower 250-101 is a cockpit flush mounted Dual USB-A power / charging unit designed to provide reliable power for most consumer products with USB charge capabilities such as smartphones and tablets. The smartPower 250-101 provides 2.7 amps at 5 VDC ± 0.25 (10 watt) for the USB port / connection. The small, unobtrusive design requiring only a 0.785 inch square cutout in the panel to be mounted. The smartPower 250-101 features a green LED backlit port for easier use in night flying conditions. Approved for FAA Certified Part 23 Aircraft and Part 27/ 29 Rotorcraft All smartPower 150/250 USB Power Supplies from Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Power supplies and mounts may be installed as a minor alteration. |
Features
- Smartphones / iPhones / Cell and Mobile Phones
- Tablets and iPads
- GPS Units
- Cameras / GoPros
- GPS Receivers / Augmenters
Specifications
- 2.7 amps (Output Current)
- Input Voltage: 9 - 48 VDC
- Output Voltage: 5 VDC +/- 0.25 (10 watt)
- Features Reverse Polarity Protection
- EMI Filtered
- Green LED Internal Backlight
- Weight: 2.6 ounces
- Dimensions: 1.5" W x 1.5" H x 2.1" D (panel cut 0.785" x 0.785")
- One year limited warranty
