NavStrobe Aircraft Navigation Light With Constant Mode

$29.59/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14931
MFR Model# AIRCRAFT T10-5W-A508

Overview

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

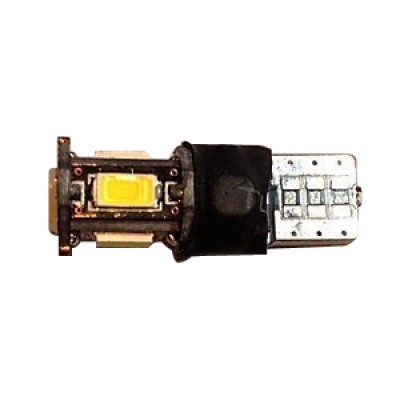

NavStrobe Aircraft Navigation Light with constant mode.

Emitter Type: SMD 5730
  • Total Emitters: 5
  • Power: 5W Equivalent
  • Color BIN: White (4300k)
Replacement for A508 bulb
  • Rated Voltage: 8-28VDC
  • 1 mode: constant on
  • Draws <140ma @ 14.4VDC
  • Luminous Flux: 350LM
  • Color Temperature: Aviation White 4300k
  • Base Type: T10
  • Reverse Polarity protected
  • Application: Aircraft Rear Position Light
  • Contains 1 light bulb per pack
Dimensions: 1.2 in x 0.40 in (3.0 cm x 1.0 cm)
Weight: 0.07 oz (1.9 g)

Reviews

Nice led light. I installed them on my Whelen tail light with strobe. First one I installed was found separated in two pieces after a 15 min flight. It was replaced under warranty (replacement was quick-good support). I installed the second one and it did exactly the same thing.... separated during first flight using it. Seems it possibly cannot handle the heat from the strobe (??).

Michel T
November 4, 2018
