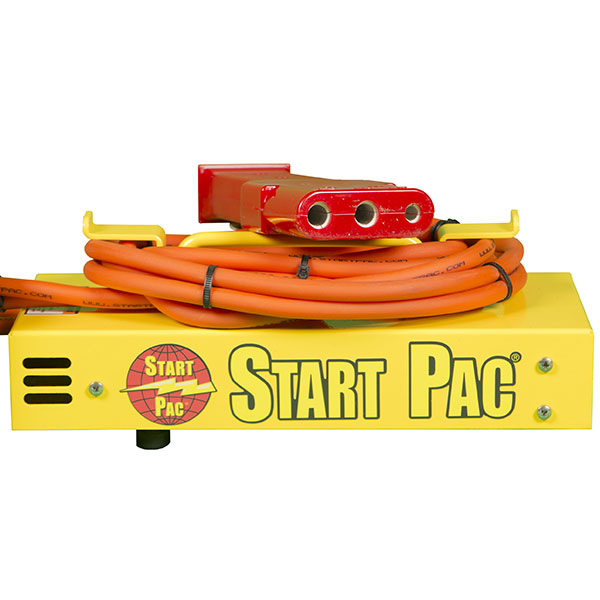

Start Pac Portable Power Supply Model 53050
Overview
| This START PAC®’s maximum amperage output is 50 amps which is more than adequate for powering up various systems such as GPS and avionics programming. It is also an excellent choice for powering the aircraft’s maintenance equipment bypassing the aircraft battery and thus preserving it from unnecessary wear. This means that the on board aircraft battery is conserved for starting only. The environmentally responsible, low VOC powder coating protects the unit from wear, tear and poor weather conditions. |
Features
- Smallest and lightest portable aircraft power supply in the world
- No duty cycle, clean continuous power
- Resistant aluminum case with environment friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
- 8'/2.4m aircraft cable built in
- If overloaded, the unit will trip off and reset itself after a short period of time
12/14V Specifications
| Maximum Continuous Current output | 50 A |
|---|---|
| DC voltage output | 14.2 VDC |
| AC voltage input | 90 - 240 VAC |
| AC current input at maximum DC power output | 7 A @110VAC3.5 A @220VAC |
| Phase | Single |
| Forced air-cooling | Yes |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Over temperature protection | Yes |
| Complete weightwith aircraft cables | 7lbs / 3kg |
| DimensionsLength x Width x Height | 113/4″ x 5″ x 4″30 x 13 x 10 cm |
24/28V Specifications
| Maximum Continuous Current output | 50 A |
|---|---|
| DC voltage output | 28.5 VDC |
| AC voltage input | 90 - 240 VAC |
| AC current input at maximum DC power output | 14 A @110VAC7 A @220VAC |
| Phase | Single |
| Forced air-cooling | Yes |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Over temperature protection | Yes |
| Complete weightwith aircraft cables | 10lbs / 4.5kg |
| DimensionsLength x Width x Height | 14″ x 5.25″ x 5.5″36 x 13 x 14 cm |
Reviews
Verified Purchase
Start Pac 53050 Power Supply 28.5V 50 Amp
Great product - perfect for an ionic updates in the cirrus vision jet. Outstanding and quick service by aircraft spruce. Great experience all around. Thanks.
Verified Purchase
Start Pac 53050 Power Supply 28.5V 50 Amp
Useful equipment
Verified Purchase
Start Pac 53050 Power Supply 28.5V 50 Amp
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This unit has no battery as it is used only when plugged in as a power supply. It does not jump start it will only power the aircraft to run avionics.
It has a standard 110v 3 prong plug.
