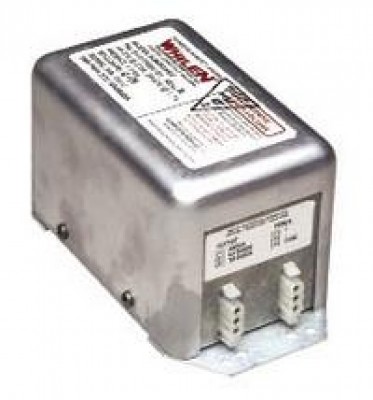

Whelen Power Supplies Model A490Atsc Series

$982.30/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-02666
MFR Model# 01-0770062-03

Overview

A490ATSC series operates one strobe lighthead. Its compact size allows mounting in the wing tip and/or the tail, adjacent to the lighthead. It produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector. This power supply will operate from 10 to 30 VDC.

Specifications

  • Drawing Number: 70062
  • Power Consumption: 4.0 amps @ 14 VDC; 2.0 amps @ 28 VDC
  • Weight: 1.7 lbs. (771gm)
  • Length: 5.0” (127mm)
  • Width: 3.12” (79mm)
  • Height: 3.06” (78mm)
