Whelen Self-Contained Light Assemblies 90033 Series

From $931.00 to $1449.00
Prices below incude GST
Mfg Model # Lens Color Mount Base Remarks Part Number Price Buy

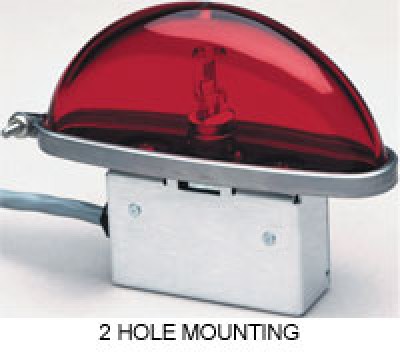

900332WhiteLower2 HoleStandard unit, 18" cable, no connector (FAA TSO-C96a)
90033-2
$1276.00
Quantity

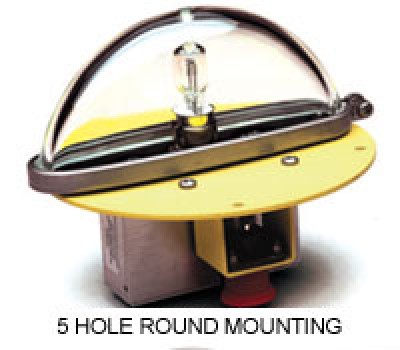

900337RedLowerRound5.12" dia. mounting base, MS310R10SL-3P connector (FAA TSO-C96a)
11-07658
$1482.80
Quantity

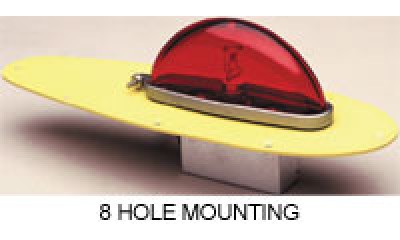

9003310WhiteLower8 Hole18" cable, AMP #208530-1, 8 position connector (FAA TSO-C96a)
11-07661
$1024.10
Quantity

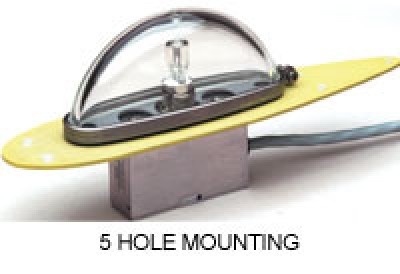

9003312WhiteUpper5 HoleAMP #1-480698-0, 2 position connector (Beech 1900) (FAA TSO-C96a)
11-07663
$1593.90
Quantity
9003313RedUpper2 HoleNo connector, 13" leads (Cessna CJ1, CJ2) (FAA TSO-C96a)
11-07664
$1593.90
Quantity
9003324WhiteLower8 HoleAMP #207567-1, 3 position connector (Beech 1900) (FAA TSO-C96a)
11-07669
$1593.90
Quantity
9003325RedUpper5 HoleMS3102R10SL-3P connector on mounting bracket (Beech Jet) (FAA TSO-C96a)
11-07670
$1593.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

90033 series self-contained, 150 watt, quartz halogen flashing anti-collision light which is factory installed on Beechcraft. It is also a direct replacement for oscillating beacons on most corporate aircraft.

Specifications

  • Weight: 0.6 lbs.(272gm) to
  • 0.9 lbs. (408gm)
  • Height: 4.4” (112mm)
  • Power Consumption: 5.5 amps
  • @ 28 VDC

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The height given in the specifications for this light is 4.4 inches. Is this the height of the complete lamp assembly or the height of the lense when the lamp is fitted to the aircraft. Also can I get the length and width of the lense.

The 4.4" height is the entire assembly. When the assembly is affixed to the aircraft the lens height is 2.35".
