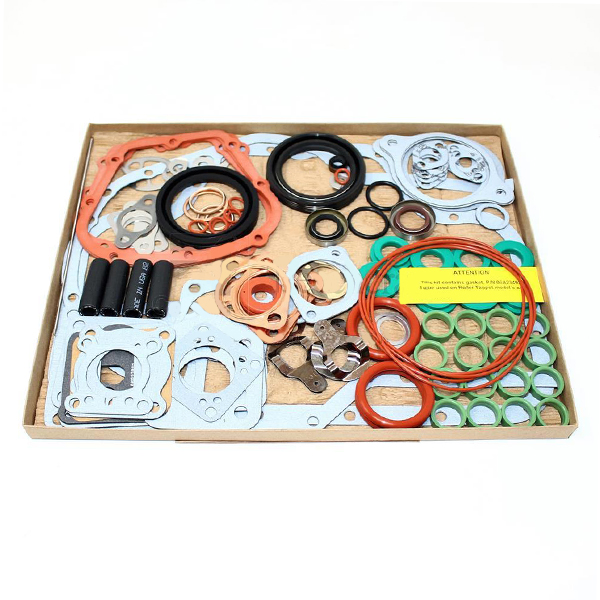

SL75441-1 for IO, HIO-360 Conventional IO-360-A, C, D, K; HIO-360-A, C; LIO, LHIO-C Wide Deck. Angle cylinder head. Contains Spiratallic "NO BLO" Exhaust Gaskets FAA-PMA Approved NOTE: Intake hoses and oil drain-back hoses must be ordered separately. |
Part in Set | Qty | Part Description | OEM Part Number |
---|---|---|---|
AN901-8A | 1 | GASKET | |
MS35769-21 | 1 | CRUSH GASKET | |
SL-STD-208 | 1 | SEAL, OIL | 06A19956 |
SL-STD-213 | 1 | SEAL | STD-213 |
MS35769-11 | 1 | GASKET | |
MS35769-31 | 1 | GASKET | |
SL1691-C | 2 | GASKET | 1691-C |
SL8313 | 1 | GASKET | 8313 |
SL12795 | 1 | GASKET | 06B23862 |
SL12681 | 2 | GASKET | LW-12681 |
SL14260 | 1 | OIL SEAL | LW-14260 |
SL60096 | 1 | GASKET | 60096 |
SL18639 | 1 | LOCKPLATE | LW-18639 |
SL61173 | 1 | GASKET | 61173 |
SL61183 | 1 | GASKET | 61183 |
SL62224 | 4 | GASKET | 62224 |
SL18661 | 16 | SEAL - SHROUD TUBE | LW-18661 |
SL66224 | 3 | GASKET | 66224 |
SL66732 | 8 | GASKET | 66732 |
SL67193 | 4 | GASKET | 67193 |
SL68315 | 1 | GASKET | 68315 |
SL68972 | 1 | GASKET | LW-13353 |
SL69164 | 1 | GASKET | 69164 |
SL69551 | 1 | GASKET | 69551 |
SL71481 | 4 | RING, OIL SEAL, 4.84 ID X .04 | 71481 |
SL71646 | 2 | LOCK PLATE | 71646 |
SL71973 | 4 | GASKET | 71973 |
SL72053 | 1 | GASKET | 72053 |
SL72059 | 1 | GASKET | 72059 |
SL72075 | 6 | SEAL, RING, OIL | 72075 |
SL72078 | 2 | LOCK PLATE | 72078 |
SL72091 | 2 | PACKING, RESISTANT, OIL | 72091 |
SL72312 | 1 | O-RING | 72312 |
SL73032 | 1 | GASKET | 73032 |
SL73383 | 2 | LOCK PLATE | 73383 |
SL73817 | 2 | LOCK PLATE | 73817 |
SL73818 | 1 | GASKET | 73818 |
SL74068 | 1 | O-RING | 74068 |
SL74712 | 4 | SEAL | 74712 |
SL76510 | 1 | GASKET | 76510 |
SL76940 | 1 | SEAL, OIL CRANKSHAFT ASSY. | 76940 |
SL77569 | 4 | O-RING | 77569 |
SL77611 | 4 | GASKET | 77611 |
SL13792 | 1 | SEAL, OIL CRANKSHAFT ASSY. | LW-13792 |
SL70455 | 1 | GASKET | 70455 |
Superior SL75441-1 Gasket Set Major Overhaul
