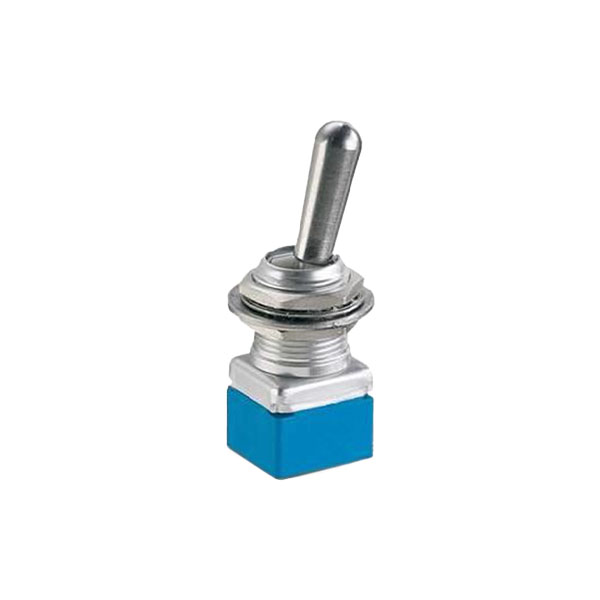

Mini Goggle Switch T3-11121 Sealed
MFR Model# T3-11121
| # of Poles | MIL No. | OTTO No. | Circuit | Our Part No. |
|---|---|---|---|---|
| 1 | MS27718-22-1 | T3-11121 | off-on | 11-00773 |
Overview
|
These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation. Featuring the unique OTTO snap-action switch mechanism in conjunction with a unique toggle actuator design, the T3 series offers snap-action contact actuation.
High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps. 15/32" sealed bushing construction, momentary and/or maintained operation. Mounting hardware provided includes two hex nuts, one lockwasher and one keyway washer. Note: MOM designates Momentary On. |
Features
- Snap-action contact actuation
- Shorter behind panel depth
- Superior wiping action keeps contacts clean
- Positive tactile response prevents operating errors
- Weighs up to 25% less than competitive products
- More contact/terminal plating choices
- Highly reliable: simpler design, fewer parts
- Black matte finish available (contact factory)
- RoHS/WEEE/Reach compliant
Specifications
SpecifictionsRatings
RatingsReference Chart
Reviews
Verified Purchase
Mini Goggle Switch T3-11121 Sealed
Nice MIL quality switch. Just what I needed for my cabin dome light on my vintage aircraft.
