Home / Rotax Engines & Parts / Parts / 912iS Series / Governors /Rotax 912 iS Hydraulic Governor Arrangement For Constant Speed Propeller (Optional)
Main Image

Rotax 912 iS Hydraulic Governor Arrangement For Constant Speed Propeller (Optional)

0 Reviews 0 Answered Questions
From $0.42 to $609.00
Prices below incude GST

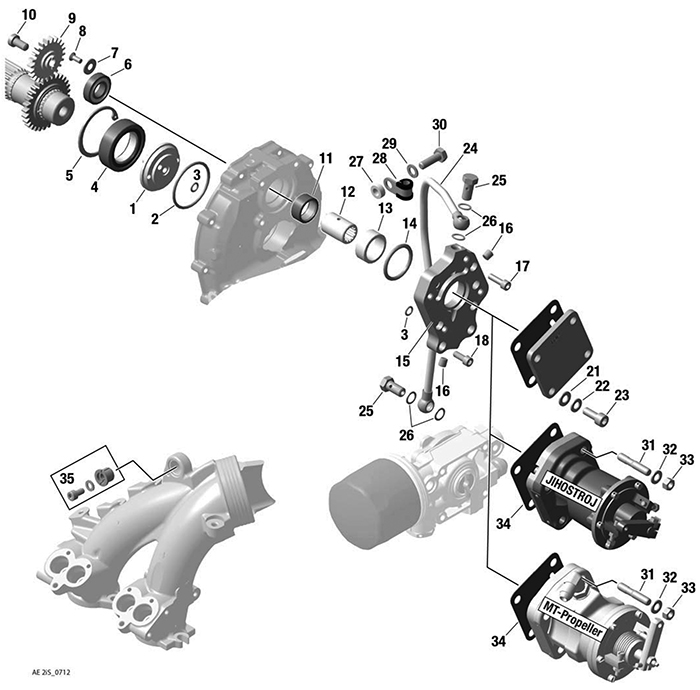

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req PN Price Buy
14950-380O-RING 32X4-N FPM 751
15-03399
$8.36
Quantity
15810-294GOVERNOR FLANGE1
15-00702
$669.90
Quantity
18241-237ALLEN SCREW M6X16 / TORQUE: 10 NM / 90 IN.LB.2
15-00169
$0.46
Quantity
29945-832 LOCK WASHER A81
15-09522
$0.61
Quantity
30240-276HEX. SCREW M8X25 / TORQUE: 15 NM / 135 IN.LB.1
15-00133
$0.87
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a    same as 881702 but without propeller shaft


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Part No.
 Description
912 iS
912 iS Sport
Price
1
xxx
 OIL INLET FLANGE, SEE CHAP 72-10-00
1
1
-
2
xxx
 O-RING 46X3-N, SEE CHAP 72-10-00
1
1
-
4
xxx
 ROLLER BEARING 205 E C3 25-52-15, SEE CHAP 72-10-00
1
1
-
5
xxx
 RETAINING RING 52X2, SEE CHAP 72-10-00
1
1
-
7
xxx
 THRUST WASHER, SEE CHAP 72-20-00
1
1
-
8
xxx
 COUNTERSUNK SCREW M5X12, SEE CHAP 72-10-00 / TORQUE 55 IN.LB.
1
1
-
12
847-773
 DRIVE SLEEVE
1
1
*
25
940-876
 BANJO BOLT M10X1X19 / TORQUE. 17 NM/150 IN.LB.
2
2
*
27
847-224
 DISTANCE SLEEVE 8.4/15/6
1
1
*
29
945-752
 LOCK WASHER A8
1
1
-
32
945-752
 LOCK WASHER A8
4
4
-
