Astro Tool Crimp Tool Turret Head DMC TH1A (M22520/1-02)

0 Reviews 0 Answered Questions
$204.33/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-20352
MFR Model# 615709

Overview

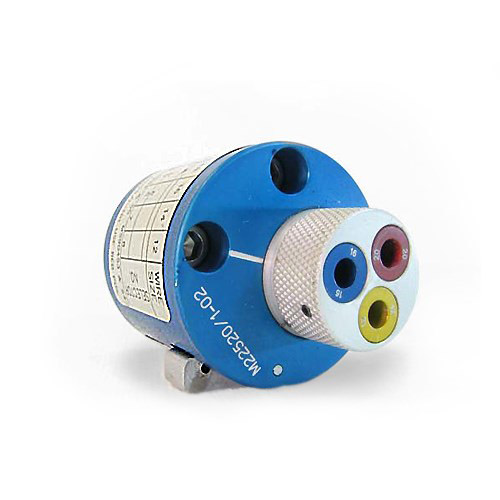

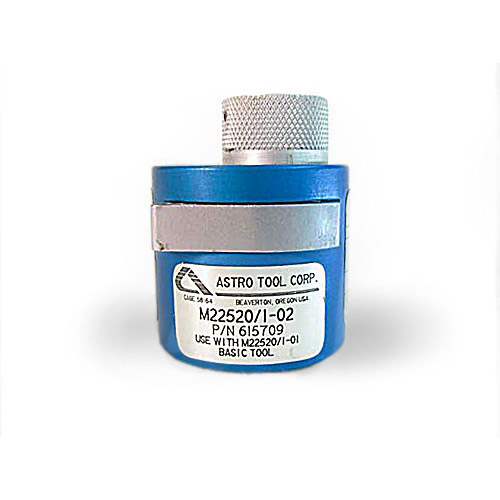

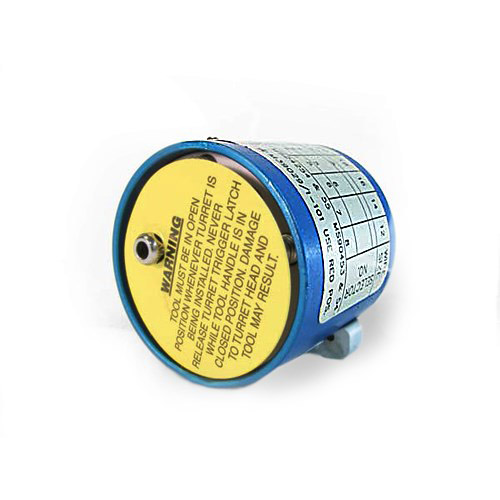

615709, mil spec M22520/1-02, is a turret head used with the 615708, mil spec M22520/1-01, crimp tool frame on size 20-12 pin and socket contacts installed in MIL-C-5015, MIL-C-26482, MIL-C-26500, and MIL-C-83723 circular connectors.

Features

  • Contact numbers: MS3162, MS3163, MS3192, MS3193, MS18134, MS18136, MS24254, MS24255, MS90453, 90454, M39029/1-101, M39029/1-102, M39029/1-103, M39029/2-105, M39029/2-106, M39029/3-108, M39029/3-109, M39029/4-110, M39029/4-111, M39029/4-112, M39029/4-113, M39029/4-114, M39029/5-115, M39029/5-116, M39029/5-117, M39029/5-118, M39029/5-119, M39029/9-132, M39029/9-113, M39029/9-134, M39029/9-135, M39029/9-136, M39029/10-138, M39029/10-139, M39029/10-140, M39029/10-141, M39029/10-142, M39029/11-146, M39029/12-150, M39029/29-212, M39029/29-213, M39029/30-217, M39029/30-218 M39029/30-219, M39029/31-223, M39029/31-224, M39029/31-226, M39029/31-227, M39029/31-228, M39029/31-229, M39029/31-230, M39029/31-231, M39029/31-232, M39029!/31-233, M39029/31-234, M39029/31-235, M39029/31-236, M39029/31-237, M39029/31-238, M39029/31-239, M39029/31-240, M39029/31-241, M39029/31-242, M39029/31-243, M39029/31-244, M39029/31-245, M39029/31-246, M39029/31-247, M39029/31-248, M39029/31-249, M39029/31-250, M39029/31-251, M39029/31-252, M39029/31-253, M39029/31-254, M39029/31-255, M39029/31-256, M39029/31-257, M39029/31-258, M39029/31-259, M39029/31-260, M39029/31-448, M39029/31-449, M39029/44-287, M39029/44-288, M39029/44-289, M39029/44-290, M39029/45-294, M39029/45-295, M39029/45-296, M39029/45-297, M39029/85-454, M39029/85-455, M39029/85-456, M39029/85-457, M39029/85-458, M39029/85-459, M39029/85-450, M39029/85-460, M39029/85-461, M39029/86-462, M39029/86-463, M39029/86-464, M39029/86-465, M39029/86-466, M39029/86-467, M39029/86-468, M39029/86-469, M39029/86-510, M39029/86-511, M39029/86-512, M39029/86-513, M39029/92-532, M39029/92-533, M39029/92-534, M39029/92-535, M39029/92-536, M39029/93-539, M39029/94-543
