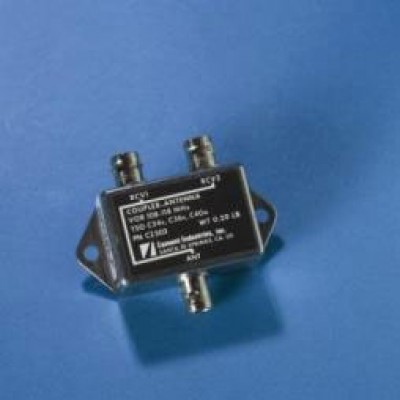

Comant Coupler - CI-502

$269.44/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17975
MFR Model# CI-502

Overview

Frequency 108-118 MHz

Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna. Compact design makes for easy installation.

Specifications

MODEL CI 502 COUPLER VOR
Electrical
Frequency
108-118 MHz
VSWR
1.5:1 Maximum
Insertion Loss
0.5 dB Maximum
Isolation
20 dB Minimum
Impedance RF
50 Ohms
Mechanical
Weight
0.25 lb. Maximum
Height
0.88 in. Maximum
Finish
Aluminum
Material
Die Cast Aluminum
Connector
BNC (Female)
Environmental
Internal Mounting
Federal Specifications
FAA TSO
C34c, C36c, C40c
