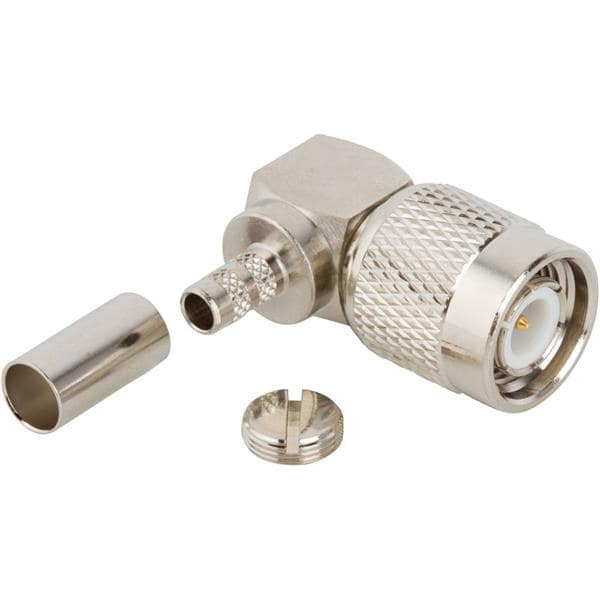

Amph enol TNC 400 Right Angle Male
MFR Model# 122430
Overview
|
RF Connectors / Coaxial Connectors TNC R/A PLUG RG55 223 142 400. Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. |
Specifications
- Product Category: RF Connectors / Coaxial Connectors
- Manufacturer: Amphenol
- RoHS: RoHS Compliant By Exemption Details
- Product: Connectors
- RF Series: TNC
- Gender: Plug
- Impedance: 50 Ohms
- Maximum Frequency: 11 GHz
- Termination Style: Cable - Crimp
- Orientation: Right Angle
- Mounting Type: -
- Cable Type: RG-55, RG-142, RG-223, RG-400
- Packaging: Bulk
- Body Finish: Nickel
- Body Material: Brass
- Brand: Amphenol RF
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Solder
- Coupling Mechanism: Threaded
- Isolation Type: Not Isolated
- Mating Cycles: 500
- Series: TNC
- Factory Pack Quantity: 1
- Voltage Rating: 500 V
- Unit Weight: 0.697013 oz
Documents
Reviews
Works great for transponder antennas using RG400 cable
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Worked great for my GPS antenna
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Looks fine.
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Quality product. Easy install
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Easy to install.
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Nice quality
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
these work great. you must have experience soldering
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Verified Purchase
Amphenol 122430 TNC Male Right Angle Rg 400
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a standard TNC male connector. If your antenna has a TNC female connector on the end, it will fit it.
Yes, the center conductor is soldered onto the connector. The barrel is crimped on.
