P5 On-Off Alternate Action Switch - Threaded Mount

Select Color:
Red Black White
Price Includes GST
Quantity
Add to Wishlist

Overview

Push and the P5 series switch holds “on” push again and the P5 switch turns “off”. Positive tactile feedback is featured so the operator is clearly aware the switch mode has been executed. The button returns to the original position after each actuation.

To guard against front panel splash and dirt, the P5 series is sealed at the button with OTTO’s patented rolling sleeve principle.The terminals are sealed with epoxy, providing a seal against flux during wiring and behind panel dirt and moisture. The combination of sealing provides smooth operation over a wide temperature range. Watertight sealing to 1meter (IP68) pressure is also available.

Load Amps Life (Full Load)
Resistive 10 25,000
Inductive 5 25,000
Motor 3 25,000
Lamp 1 25,000


Switch
Part No.

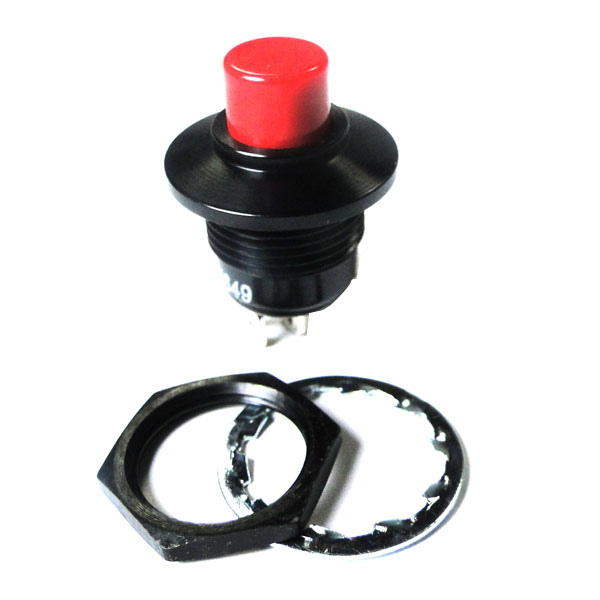

Thread Mount - Red
P5-315221
11-00769

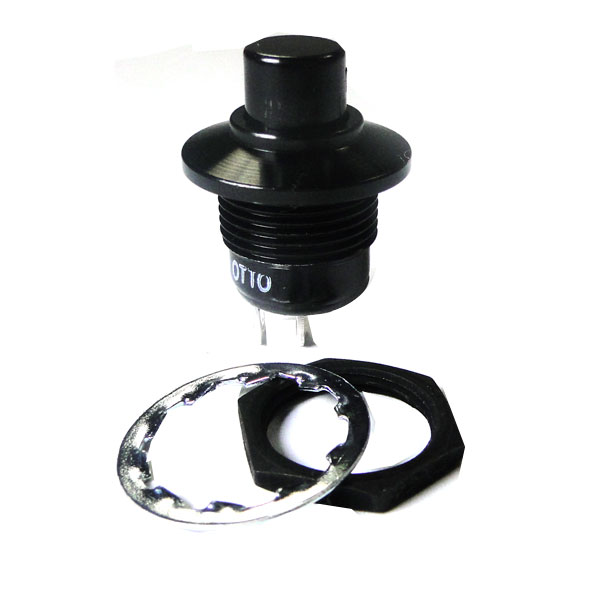

Thread Mount - Black
P5-31522
11-00770

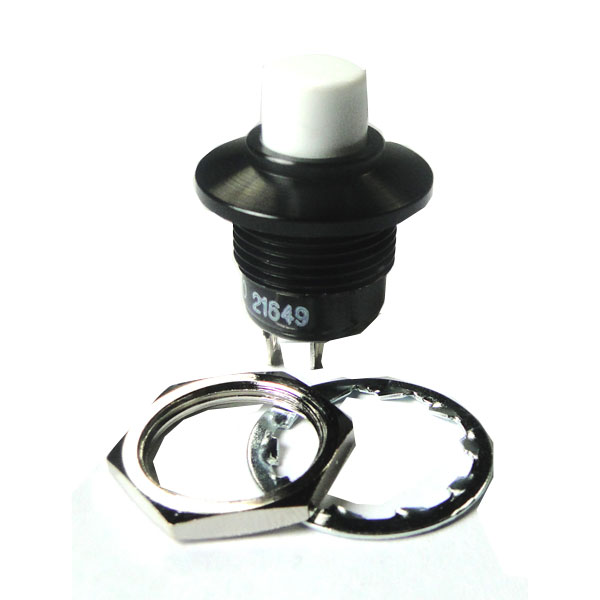

Thread Mount - White
P5-315222
11-00771
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size hole do the P5 switches mount in?

The P5 switch is a P5-3 series. Please view the datasheet available for more information on measurements and mounting requirements.
