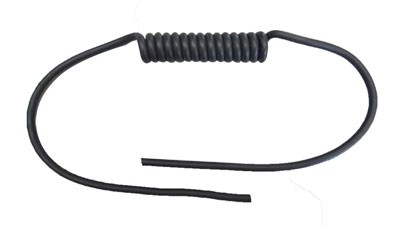

PMA'd for installation with Garmin Autopilots See Garmin's AML (Approved Model Listing) Cygnet offers two coil cords used to connect control wheel switches to the instrument panel. The coiled section extends and contracts allowing full control wheel range of motion. |
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

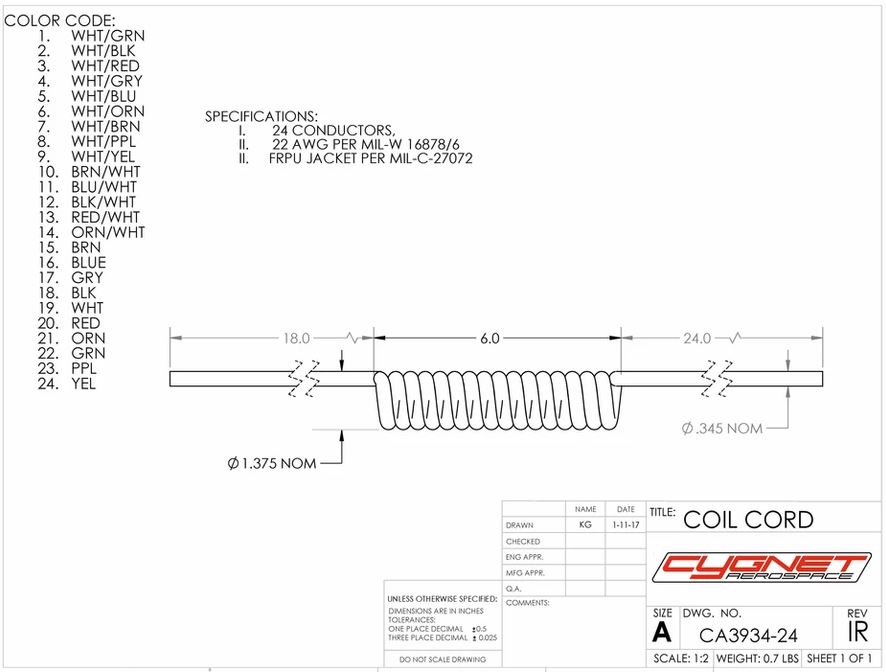

Here are the requested dimensions: Coil Diameter 1-1/4" and straight wire diameter 5/16".
The insulation on the wires meets MIl-W16878/6 and can be a few different products that meet the minimum specifications. The outer jacket is flame resistant polyurethane per MIl-C-27072.
6 inches unstretched.
