Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 503UL /Rotax 503 Ul Engine Cylinder | Cylinder Head And Intake Manifold: 1-Carb. Configuration Parts
Main Image

Rotax 503 Ul Engine Cylinder | Cylinder Head And Intake Manifold: 1-Carb. Configuration Parts

1 Review 1 Answered Question
From $0.62 to $154.00
Prices below incude GST

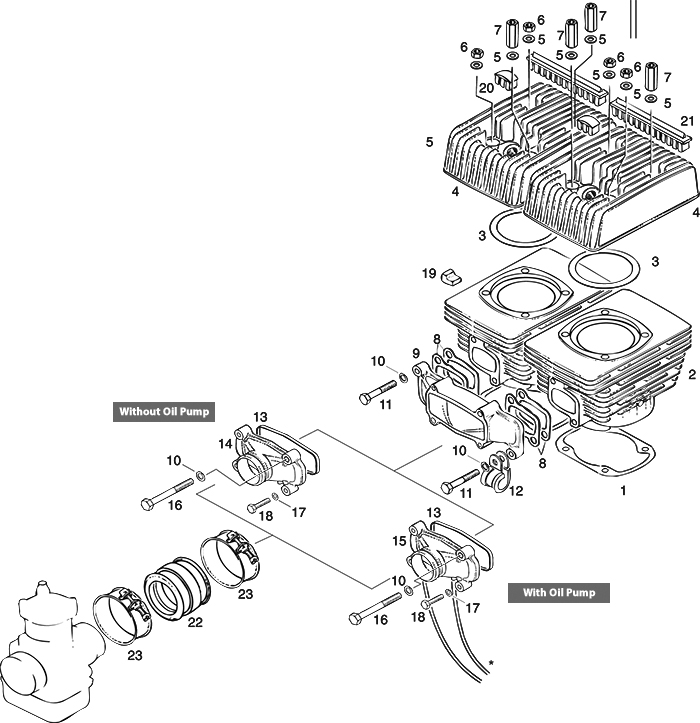

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Part Number Description Qty PN Price Buy
6242-209HEX. NUT M8 DIN 9344
15-00212
$0.74
Quantity
7842-050DISTANCE NUT M8X374
15-01243
$41.53
Quantity
12851-100CABLE CLAMP 181
15-01507
$9.32
Quantity
13850-151RUBBER RING 83X1, 5X3, 51
15-01424
$4.29
Quantity
14867-465INTAKE COVER1b
15-01893
$169.40
Quantity
15867-462INTAKE COVER1c
15-01892
$77.54
Quantity
18941-501HEX.SCREW M6X302
15-03258
$0.68
Quantity
21860-091NOISE DAMPER, LONG2
15-01682
$15.02
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   RED 72,00 mm - 72.01 mm
         GREEN 72.01 mm - 72.02 mm
  • b   for mixture lubrication
  • c   for oil pump version


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

I would of hoped they would of been hardened nuts , but there just plain old metric nut you could buy over the counter ag shop.

Synov G Verified Purchase

ROTAX 242-209 HEX. NUT M8
July 14, 2023

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Im missing one of the short vibration dampers (part # 860-096). Is the price for 8 of them or is it for one?

This is price per one. The quantity 8 shows how many are required for the engine.
