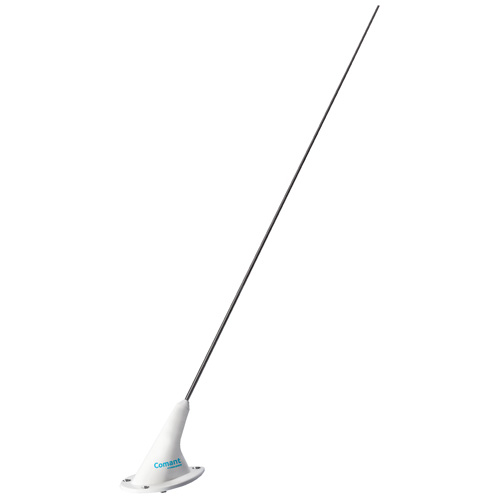

Comant VHF Communications - CI-292-1
MFR Model# CI-292-1
Overview
|
Frequencies Covered Designed specifically for top mounting on an aircraft. Provides excellent omni-directional pattern coverage for all VHF aircraft communications. It is equivalent to the CI 291 but features a straight tapered stainless steel radiator. The CI 292-1 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
Specifications
MODEL CI 292-1 VHF ANTENNA | |
Electrical | |
Frequency | 118-137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 50 Watts |
Mechanical | |
Weight | 0.5 lb. Maximum |
Height | 20.0 in. Maximum |
Material | Cast Housing/Stainless Steel Whip |
Finish | Polyurethane Enamel |
Connector | BNC (Female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50,000 ft. |
Air Speed | 250 KTAS |
Federal Specification | |
RTCA Environmental | DO-160D |
FAA TSO | C37d, C38d |
Documents
- Tech Datasheet (PDF)
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manual this antenna meets the requirements and specifications for the GTR 225.
