Comant UHF (CI-177-20)

$701.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06836
MFR Model# CI-177-20

Overview

Frequency • 450-470 MHz

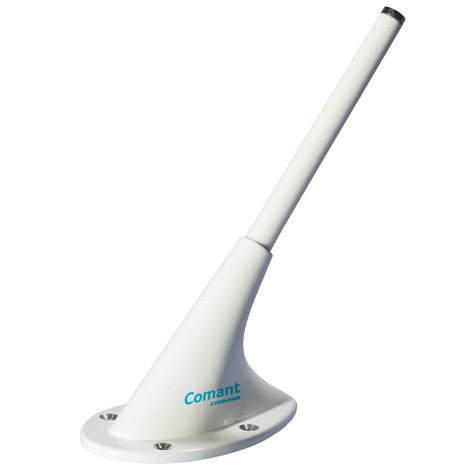

A rugged monopole antenna particularly wellsuited to the harsh environments experienced on the underside of an aircraft. Features standard4-hole mounting, diecast metal base and radiator encased in glass laminate housing.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 177-20 UHF ANTENNA
Electrical
Frequency

450-470 MHz

VSWR

2.0:1 Maximum

Polarization

Vertical

Radiation Pattern
Omni Directional
Impedance RF
50 Ohms
Power RF
30 Watts
Mechanical
Weight
0.7 lb. Maximum
Height
7.00 in. Maximum
Material
Diecast Metal base
Finish
Glossy White Polyurethane Paint
Connector

BNC (Female)

Environmental
Temperature
-55ºC to +55ºC
Altitude
30,000ft.
Air Speed
450 Knots TAS at 25,000 ft.
Federal Specifications
FAA TSO
N/A
Enviromental RTCA
DO-160D
