RAMI AV-530 Antenna

$236.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06696
MFR Model# AV-530

Overview

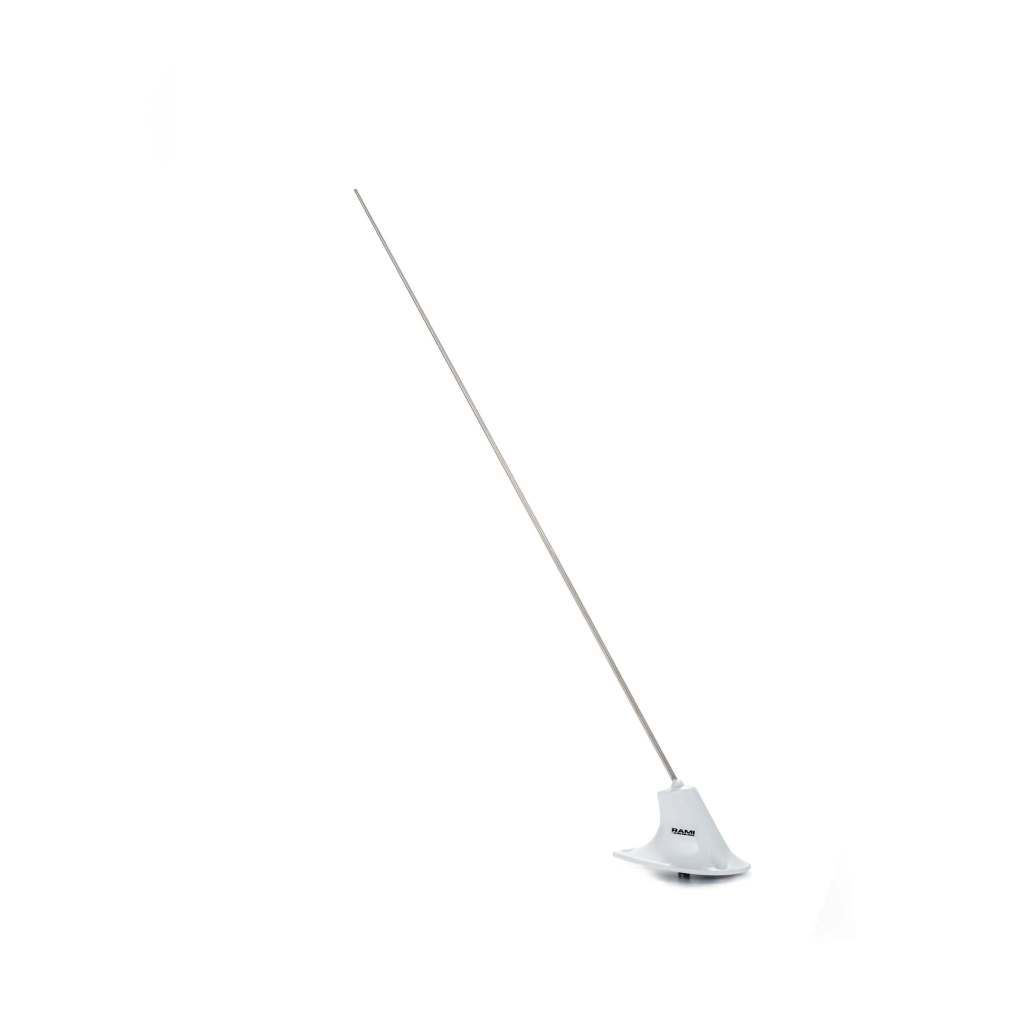

The AV-530 is designed for broadband communications. The antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph.

Specifications

  • Application: Airborne Communications"
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 0.5 lb
  • Max Height: 24-1/2"
  • RF Power Capacity: 25 Watts
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Andrew B Verified Purchase

RAMI AV-530 COMMAntenna TSO

June 22, 2023

Andrew B Verified Purchase

RAMI AV-530 COMMAntenna TSO

June 22, 2023

Great product, installation kit came with it and instructions were perfect.

High A Verified Purchase

RAMI AV-530 COMMAntenna TSO

March 21, 2023

Excellent produc at an affordable price

Larry M Verified Purchase

RAMI AV-530 COMMAntenna TSO

December 15, 2021

Antenna came in the original box with everything needed to complete the installation. Nice product!

William R Verified Purchase

RAMI AV-530 COMMAntenna TSO

December 11, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The latest antenna I just received, the actual antenna is metal versus the older ones were coated with plastic?

The AV-530 has always been metal, the AV-529 has the same function but it is the fiberglass encased version.
