Double Shielded Tefzel Wire MIL-C-27500 2 Conductor 22 AWG - White - M27500-22TG2V64 - Per Foot

$4.79/Foot
Price Includes GST
Quantity
Add to Wishlist
Part# 11-17168
MFR Model# M27500-22TG2V64

Overview

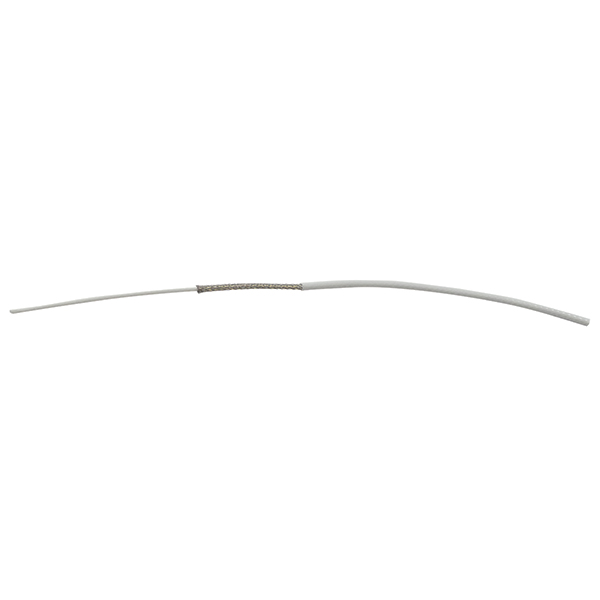

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

Quantity Discount Available:
QTY 1000 save 40%

Specifications

  • Conductor Count: 2
  • Inner Conductor Type: SAE AS22759/18
  • AWG: 22
  • Jacket Type: Double Extruded White ETFE
  • Shield Type: Double TPC Round
  • Temperature Rating: 150°C
