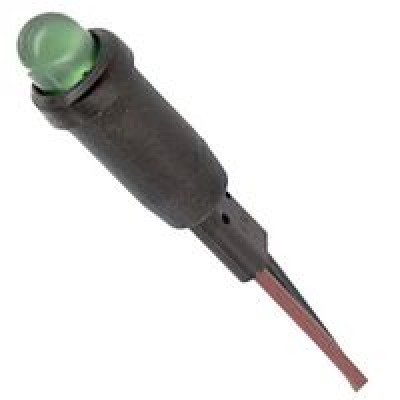

LED Panel Mount Green Indicator - Green - 24V

$28.16/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-07840
MFR Model# 16F758

Overview

LED panel mount green indicators (12 or 24V available).

Specifications

  • Mounting Hole Dia: 6.35mm
  • LED Color: Green
  • Forward Current If: 20mA
  • Forward Voltage: 12V or 24V, your choice
  • Luminous Intensity: 20mcd
  • Viewing Angle: 60°
  • Bulb Size: 5.08mm
  • Lens Width: 7
  • Lens Color: Green
  • RoHS Compliant: Yes
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the LED Panel Mount Indicators 'Barefoot' or do they have a series resistor already built-in?

Per the manufacturer, these are barefoot and do NOT have a series resistor built in.

Q: What panel thickness will these LED Panel Mount indicators accommodate?

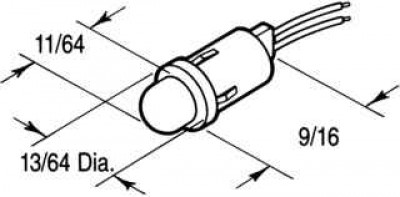

The length of the LED light is 9/16in. Please see the diagram on the product page and the specifications tab for more information.

Q: What is the diode forward voltage?

The diode forward voltage is 2.1V with the 12V indicator part number 11-07841.

Q: What size resistor does one use for 12V setup?

There is no resistor required for this LED indicator.

Q: Can this be installed on certified aircrafts?

There is no FAA Approval on these LED lights. Please check with your A&P to see if they can be installed in your application.

Q: Will these LED lights dim with the panel dimmer?

You are able to dim LEDs but it requires a dimmer with a PWM. (Pulse Wave modulation)
