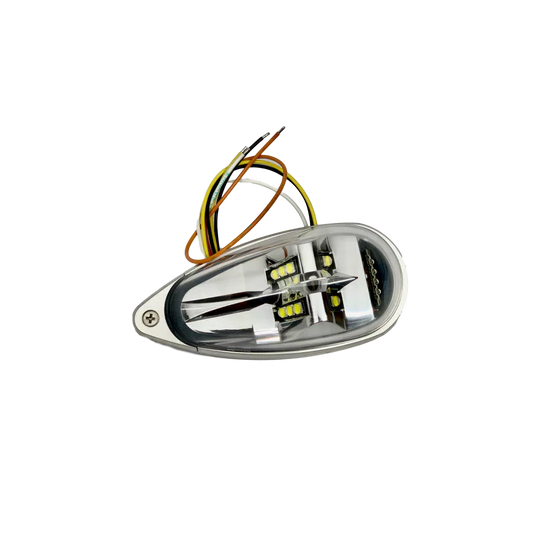

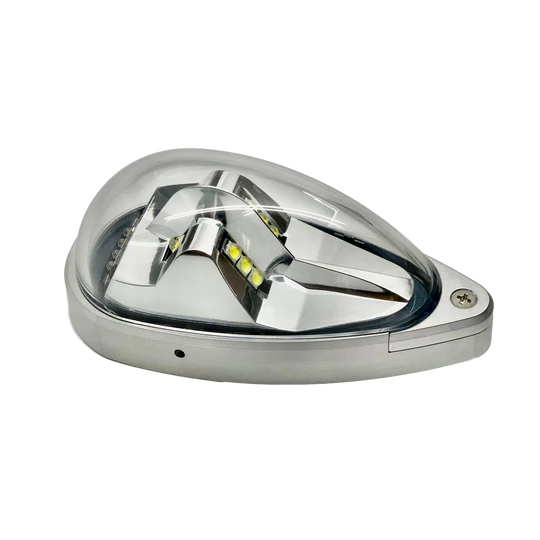

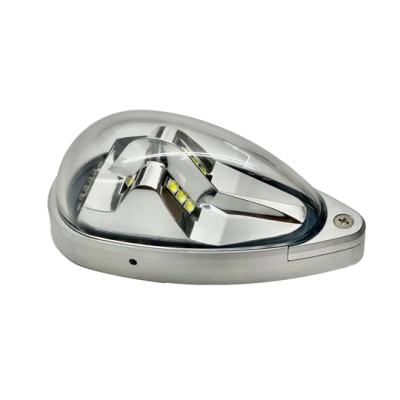

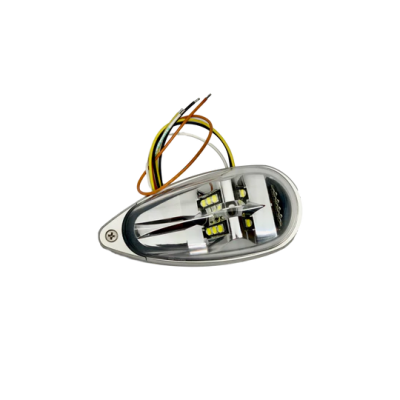

Whelen Orion™ 650 - 400 Effective Wingtip Position / Anti-Collision Lighthead
From $487.00 to $487.00
Prices below incude GST
- JUMP TO
- Overview
- Specifications
- Reviews
- Q&A
Overview
| Whelen Aerospace Technologies ORION650 Series LED assemblies are FAA/TSO’d and STC approved. These LED aviation lighting assemblies incorporate the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofittable to the Whelen legacy strobe products. The ORION650 series is quite simply the brightest form of LED Anti-collision and Position lighting available. |
Specifications
- Nominal Operational Voltage: 28VDC (Operational from 22-32VDC)
- Input Current Position Lights - 0.17 Amps
- Anti-Collision Light (Avg.) - 0.24 Amps
- Anti-Collision Light (Pulse) - 2.5 Amps
- Flashrate - 45 ± 5 FPM
