Home / Avionics / Antennas / Comant /Comant VOR/Loc/GS Antenna CI-158C-2

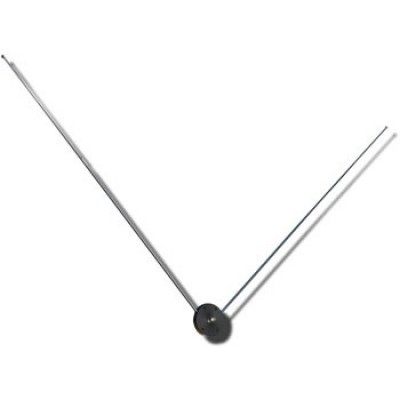

Main Image

Comant VOR/Loc/GS Antenna CI-158C-2

0 Reviews 3 Answered Questions
$520.30/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-06806
MFR Model# CI-158C-2

Overview

Frequency • 108-118 MHz (VOR/LOC)
329-335 MHz (GS)


“V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of the vertical fin stabilizer offering the four-hole mounting configuration found on many beech aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions.

Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.

Not approved for helicopter installations.

Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Specifications

MODEL CI 158C-2 V- DIPOLE
Electrical
Frequency

108-118 MHz (VOR/ LOC)

329-335 MHz (Glide Slope)
VSWR

3.0:1 108-118 MHz (VOR/ LOC)

3.0:1 329-335 MHZ(Glide Slope)
Polarization
Horizontal
Radiation Pattern
Dipole
Impedance
50 Ohms Nominal
Power
Receive Only
Mechanical
Weight
.35 lb. Maximum
Height
17-5/8 in. Maximum
Material
Derlin Housing/ Stainless Whips
Finish
Black Housing/ Stainless Whips
Connector
BNC
Environmental
Temperature
-55ºC to +85ºC
Altitude
50,000ft.
Air speed
250 Knots TAS @ 25,000 ft
Federal Specifications
RTCA Environmental
DO-160
FAA TSO
C34e, C38e, C40c
RTCA MOPS
DO-192, DO-195, DO-196

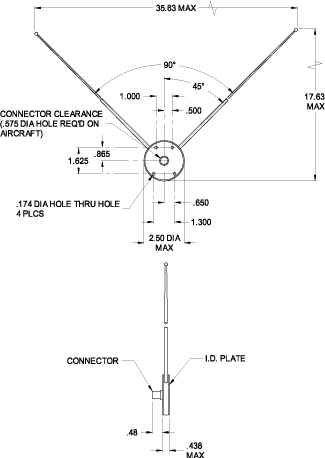

Dimensions

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of the Comant CI-158C-2?

The height is 17-5/8 inches for each rod and the weight is 0.35 lbs.

Q: The description says the elements detatch. How do they detatch? Are they simply threaded? Are replacement elements availabe?

The CI 158C-2 has antenna's which are tapped and threaded for ease of installation and replacement. The replacement parts are not on hand, however they can be special ordered.

Q: What is the difference between the CI158C and the CI158C-2 antennas?

Per Comant: the difference is the CI-158C is made for Cessna type aircraft and has a 2 hole mounting. The CI-158C-2 is made for Beechcraft and has a 4 hole mounting.
