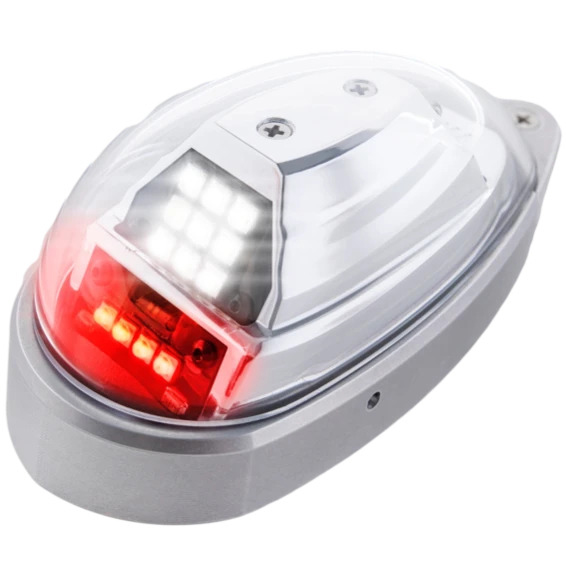

Whelen Orion 6501R 12V Wingtip Pta Red
MFR Model# 01-0790725-02
| Model Num. | Description | Whelen # | Part Number |
|---|---|---|---|
| OR6501R | Red Forward Position, Anti-Collision Light Wingtip Assembly, 14 VDC | 01-0790725-02 | 11-18766 |
Overview
| The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved. |
Specifications
- Drawing 90725
- Weight 0.26 lbs
- Current Draw for 14V Models: 0.30 amps / 0.70 Position avg ACL
- Current Draw for 28V Models: 0.15 Amps / 0.35 Position avg ACL
- Lenses Clear Hardcoated Polycarbonate
Drawing
Videos
Reviews
A&P installed on my 1961 Piper Colt, work and look Great!!!!!!!
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
These are bright.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Easy install in my Cessna and plenty bright. Hope they last a long time!
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Low profile easy install and super bright ,even in day time .Great product.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Replaced the older Whelen light on my 1971 Cherokee PA28 180F. Very bright, excellent fit, pretty simple install.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
As advertised. Bright and well-built.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Unit appears to be of good quality. I have not installed at this time as its for a project.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
It was an easy install on my 54 c170b. The old whelen strobe had 3 wires and the nav light wire was there also so there was no need to add any wiring. The lights are perfect and bright. A pilot could not see my strobes at 2 miles on a clear day but they seem bright on the ground. A warning sticker for the strobe would have been a nice thing to include and is recommended/required due to the intensity of the strobe. Overall, very satisfied. Removed 2 pounds and some amps from the plane! No noticeable r/f noise either.
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Great product and more features than expected. Arrived in Australia very promptly
Verified Purchase
Whelen Orion 6501R 12V Wingtip Pta Red
Direct replacement for my older wingtip lights on my 65 Comanche. These enabled me to remove the strobe power supplies in the wingtip shaving off 2.5 lbs of weight. They look sharp and are really bright. The price is high but that’s the case with aviation and quality products. This was a great project to give my plane a facelift and reduce electrical load. Install time if just removing the old one and the old strobe power supply was about an hour a side. I ran a sync wire from wing tip to wing tip that added another couple hours but it was worth it.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Some Cessnas require a wingtip adapter. You will need to verify with your A&P to determine if your aircraft requires one. Example adapter part number is 11-18768.
Part number 11-18776 would work. It is 20awg 4 conductor shielded wire.
The Orion 650E outputs 400 effective candela.
650E is only for embedded wingtip designs meaning that they depend on the aircraft's exterior lens to keep them protected.
The Orion 650 outputs 150 effective candela.
