Whelen Orion 6501G 12V Wingtip Pta Green

$609.40/Each
Price Includes GST
Part# 11-18768
MFR Model# 01-0790725-01
Model Num.DescriptionWhelen #Part Number
OR6501GGreen Forward Position, Anti-Collision Light Wingtip Assembly, 14 VDC01-0790725-0111-18768

Overview

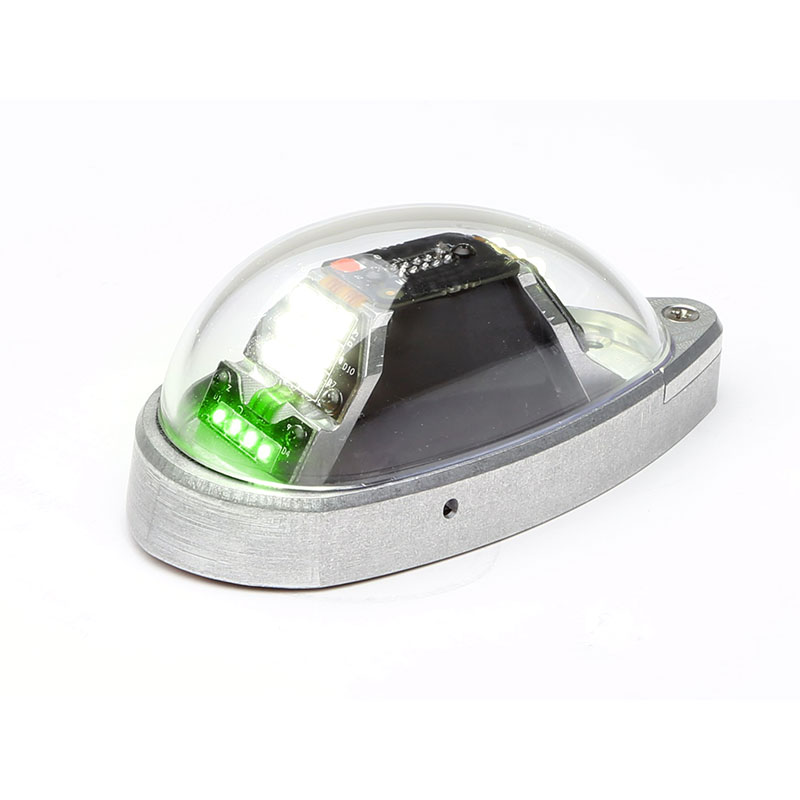

The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.

Specifications

  • Drawing 90725
  • Weight 0.26 lbs
  • Current Draw for 14V Models: 0.30 amps / 0.70 Position avg ACL
  • Current Draw for 28V Models: 0.15 Amps / 0.35 Position avg ACL
  • Lenses Clear Hardcoated Polycarbonate

Drawing

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

A&P installed on my 1961 Piper Colt, work and look Great!!!!!!!

Luther W Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

November 25, 2024

These are bright.

James W Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

July 27, 2024

Hardest part was pulling new wire, used shielded even though not necessarily required to make sure of quiet radios.

Kevin T Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

June 28, 2024

Low profile easy install and super bright ,even in day time .Great product.

Rudolph O Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

June 5, 2024

Replaced the older Whelen light on my 1971 Cherokee PA28 180F. Very bright, excellent fit, pretty simple install.

David C Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

February 9, 2024

As advertised. Bright and well-built.

Jim D Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

December 30, 2023

Unit appears to be of good quality. I have not installed at this time as its for a project.

Phillip H Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

August 15, 2023

Direct replacement for my older wingtip lights on my 65 Comanche. These enabled me to remove the strobe power supplies in the wingtip shaving off 2.5 lbs of weight. They look sharp and are really bright. The price is high but that’s the case with aviation and quality products. This was a great project to give my plane a facelift and reduce electrical load. Install time if just removing the old one and the old strobe power supply was about an hour a side. I ran a sync wire from wing tip to wing tip that added another couple hours but it was worth it.

Pat
November 1, 2022

Direct replacement and very bright

Rick M Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

July 10, 2022

Works exactly as advertised

Natron A Verified Purchase

Whelen Orion 6501G 12V Wingtip Pta Green

November 3, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this come with all mounting hardware/brackets for a Cessna 172M ? My mechanic seemed to think something else was required, but I have not seen any other bracket options.

Some Cessnas require a wingtip adapter. You will need to verify with your A&P to determine if your aircraft requires one. Example adapter part number is 11-18768.

Q: Do you sell appropriate shielded wiring to install in my Cessna wings with connectors for theses Orion 650 strobes/Nav?

Part number 11-18776 would work. It is 20awg 4 conductor shielded wire.

Q: What strobe is brightest, the Orion 650 or the 650 E?

The Orion 650E outputs 400 effective candela.

650E is only for embedded wingtip designs meaning that they depend on the aircraft's exterior lens to keep them protected.

The Orion 650 outputs 150 effective candela.
